Intro

Vibration Shaker Systems

The Modal Shop offers a full line of individual modal shakers and vibration shakers. Kits are also available and include both shaker and amplifier required. Modal shakers offer a through-hole armature to simplify your test setup. Dual purpose vibration test shakers come equipped with a platform for vibration testing and a through-hole armature for modal analysis applications.

Miniature Shaker Kits


K2002E01
Miniature Inertial Shaker

The Miniature Electrodynamic Inertial Shaker System Model K2002E01 consists of a compact and lightweight 2002E Inertial Force Generator, along with a compact 2000E Mini Amplifier. The shaker system is well-suited for structural testing as well as a variety of general vibration testing applications particularly in small, confined locations.


Models 2004E and 2007E
Educational Laboratory Research

The compact design and portability make the 2004E/2007E mini-shakers a versatile, accessible, and popular solution for test and instrumentation engineers. They are ideally suited for general purpose vibration testing of small components, electronic assemblies, Integrated Circuits and Printed Circuit Boards, or as an excitation transducer for experimental modal, academic, biomedical, or laboratory research.


K2004E01
SmartShaker

This electrodynamic exciter is a small, portable permanent magnet shaker with a new generation of ultra compact precision power amplifier integrated in its base. The revolutionary SmartShakerâ„¢ design eliminates the need for a separate, cumbersome power amplifier - just plug the excitation signal from a dynamic signal analyzer or function generator directly into the BNC on the base of the shaker. The unit is supplied with a DC power supply but can be run directly from any 12-21 VDC supply.

Modal Shaker Kits


Model 2025E
Experimental Modal Testing Exciter

The Modal Shop’s Modal Shaker Model 2025E, a very lightweight electrodynamic modal exciter, is capable of providing up to 13 lbf (58 N) of peak force excitation in a small footprint weighing just 13 lb (6 kg). With a 0.7 in (18 mm) general purpose stroke and useful frequency range beyond 9 kHz, the 2025E is suitable for structural testing and experimental modal analysis applications, including single and multiple inputs (SIMO and MIMO) using random, burst random, sine dwell, or chirp excitation signals.


Model 2060E
Ground Vibration Testing Exciter

The Modal Shop’s Modal Shaker Model 2060E, a lightweight electrodynamic modal exciter, is capable of providing up to 60 lbf (267 N) of peak force excitation in a small footprint weighing just 37 pounds (17 kg). With an extended 1.4" (36 mm) stroke enhancing input levels at low frequencies and useful frequency range beyond 6 kHz, the 2060E is suitable for structural testing and experimental modal analysis applications, including single and multiple inputs (SIMO and MIMO) using random, burst random, sine dwell or chirp excitation signals.


Model 2100E11
Automotive and Aerospace Exciter

The Modal Shop 2100E11, a lightweight, electrodynamic modal exciter, is capable of providing 100 lbf (440 N) of peak force excitation in a small footprint weighing just 33 pounds (15 kg). With a 1 in stroke for solid low-frequency performance and useful high-frequency range beyond 5400 Hz, the 2100E11 is suitable for structural testing and experimental modal analysis applications, including single and multiple inputs (SIMO and MIMO) using random, burst random, sine dwell or chirp excitation signals.

Vibration Shaker Kits


Model 2025E-HF
20 kHz Range Shaker

The Modal Shop 2025E-HF High Frequency Shaker is a 13 lbf (111 N) sine-peak electrodynamic unit. The shaker is designed for general purpose vibration testing of small components and stress screening of electronic sub-assemblies. The shaker has an extended frequency range for use in calibration of accelerometers and general purpose high frequency testing. The compact size of the 2025E-HF shaker (11 lb / 5 kg total) and large specimen mounting table surface (2.125" / 54 mm diameter) with multiple internally-threaded attachment points makes the shaker assembly ideally suited for such applications as production screening, accelerometer calibration and high frequency testing.


Model 2075E
Vibration Control Testing

The Modal Shop’s Dual-Purpose Shaker Model 2075E is a small and lightweight, yet powerful permanent magnet shaker, providing up to 75 lbf pk sine force. A large armature (3.25 in/8.3 cm diameter platform table supporting payloads up to 7 lb/3.2 kg) makes the shaker ideal for traditional vibration control testing of components and subassemblies. The unit is also designed with a through-hole armature and includes a chuck and collet attachment, providing simple set-up with stingers for experimental modal analysis applications. When used in this configuration, these stingers greatly simplify test setup with an easy connection to the force sensor and test structure, and help decouple cross-axis force inputs, minimizing force measurement errors.


Model 2110E
Test Components and Subassemblies

The Modal Shop’s Dual-Purpose Shaker Model 2110E is a compact and powerful vibration shaker, providing up to 110 lbf pk sine force. A large armature (3.25 in / 8.3 cm diameter platform table supporting payloads up to 10 lb / 4.5 kg) makes the shaker ideal for traditional vibration control testing of components and subassemblies. The unit is also designed with a through-hole armature and includes a chuck and collet attachment, providing simple set-up with stingers for experimental modal analysis applications. When used in this configuration, these stingers greatly simplify test setup with an easy connection to the force sensor and test structure, and help decouple cross-axis force inputs, minimizing force measurement errors.


Model 2500E
Vibration Testing and Stress Screening

The Modal Shop’s Electrodynamic Shaker Model 2500E is a 500 lbf pk sine force shaker designed for general-purpose vibration testing of small components, as well as stress screening of electronic and mechanical sub-assemblies. It is designed to re-create field vibration in a controlled laboratory setting and can be used in a variety of R&D, reliability, and quality assurance applications within the automotive, aerospace & defense, and consumer electronics sectors.

Portable Accelerometer Calibration Systems

The Modal Shop offers a variety of Portable Accelerometer Calibration Systems, which are designed to calibrate accelerometers in the field or in the lab. These systems are typically small, lightweight, and battery-powered, making them easy to transport and use. They can be used to calibrate a wide variety of accelerometers, including piezoelectric, piezoresistive, and MEMS accelerometers.

Calibration Systems


Model 9155D
Calibration Precision, World Class Uncertainty

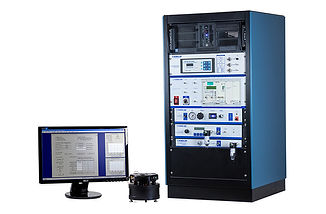

The Accelerometer Calibration Workstation Model 9155D offers accurate back-to-back comparison calibrations of ICP® (IEPE) and charge mode piezoelectric accelerometers in accordance with ISO 16063-21. The 9155D system also calibrates piezoresistive (MEMS), capacitive, and velocity sensors via available options.As part of PCB Piezotronics, the world leader in piezoelectric and measurement grade MEMS accelerometers, The Modal Shop offers Accelerometer Calibration Systems that deliver precision instrumentation for control and confidence. Users from the world's largest aerospace companies and automotive manufacturers, to research labs and consumers projects, place their trust in our systems to deliver an accurate, high throughput calibration process.


9140 Series
Bring Laboratory Calibration Onsite

The Portable Vibration Calibration System 9140 Series brings the calibration laboratory onsite to your sensors. Calibrate vibration sensors with unprecedented portability and automation, with confidence in the results, the future availability of the data, and the ability to withstand the scrutiny of ISO 17025 metrology requirements.


Model C9110D-T
Create Calibration Certificates for Vibration Instrumentation

Optimized for vibration transducers found in research & development, automotive, aerospace, and general testing applications, Charge Mode Portable Vibration Calibrator Model C9110D-T is a traceable calibration system in a mobile package. The powerful shaker supports calibration of ICP® (IEPE), piezoelectric charge, piezoresistive (PR), modulated current (CVLD), and variable capacitance accelerometers over a broadband frequency range from 5 Hz to 10 kHz.


Model 9110F
Accelerometer Transducer Test Set

The Portable Vibration Calibration Kit for Aviation Applications Model 9110F, similar to Charge Amplifier Input Portable Vibration Calibrator Model C9110D is a transducer test set with an enhanced suite of accessories specific to the wide variety of accelerometers used within aviation applications for rotor track and balance, dynamic propeller balance, and turbine engine balance.


Model 9000A
Drive Vibration Shakers and Acoustic Couplers

The SmartSineâ„¢ Calibration Driver Model 9000A is a battery-powered sinusoidal signal source used to drive shaker systems to predefined vibration levels and frequencies to calibrate individual sensors, vibration switches and data collectors. The 9000A can also be used to drive an acoustic coupler, such as The Modal Shop's Model 9917C Microphone Comparison Calibrator for calibration of array microphones.
